Description

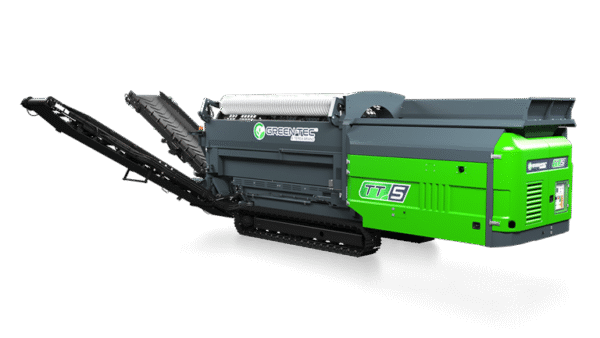

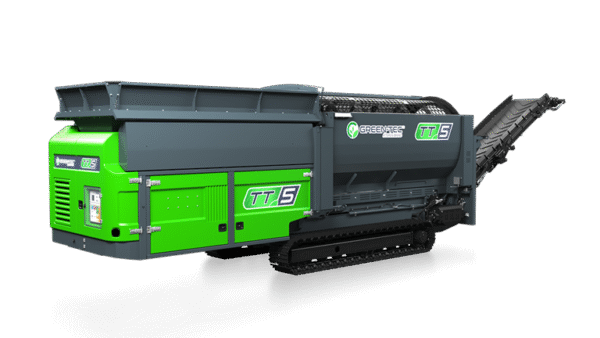

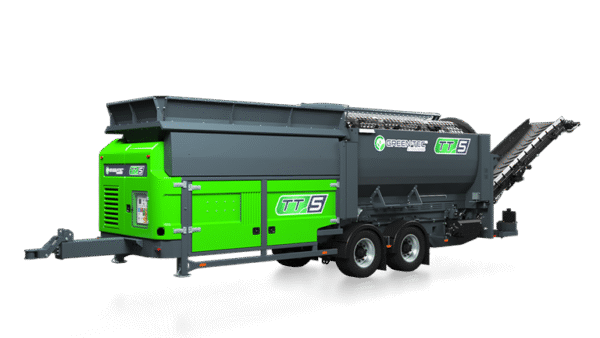

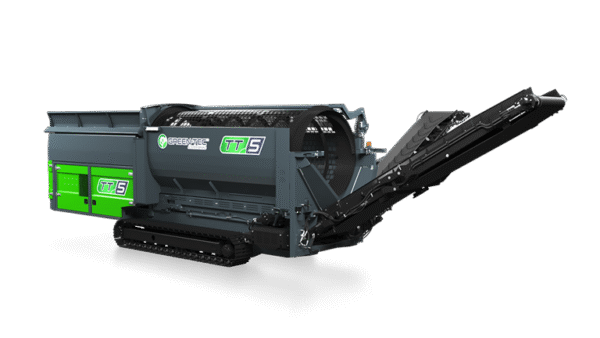

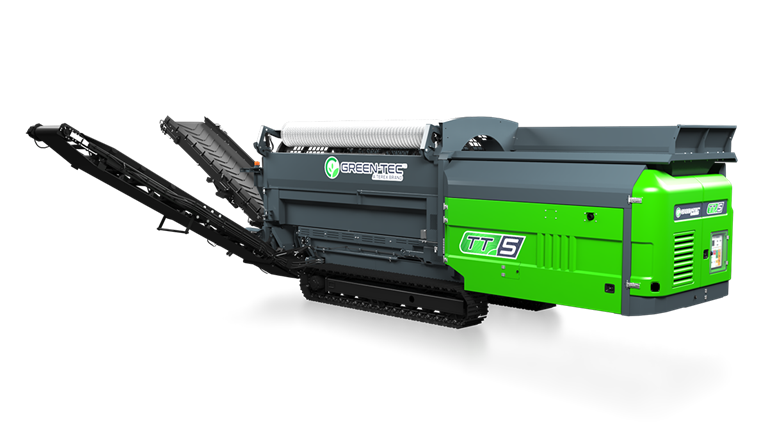

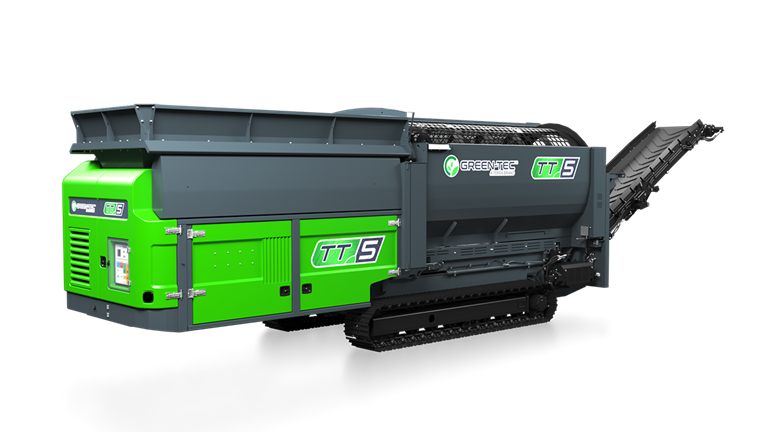

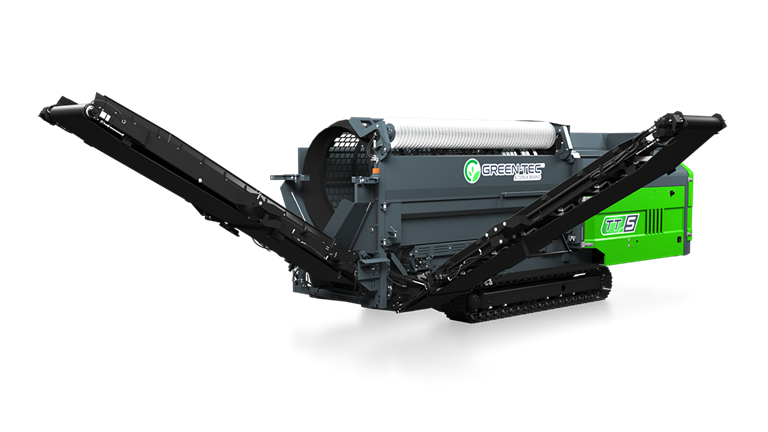

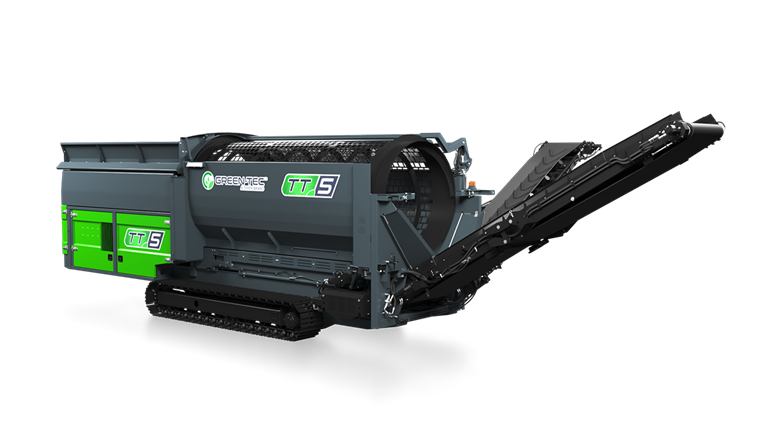

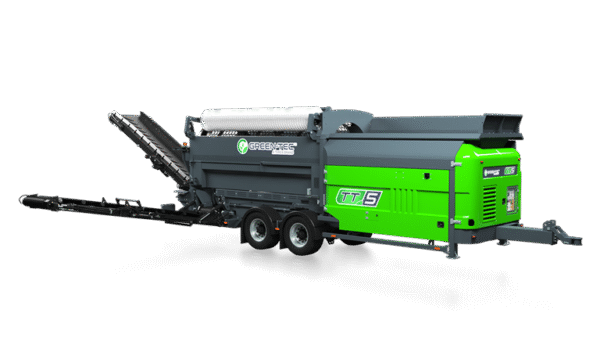

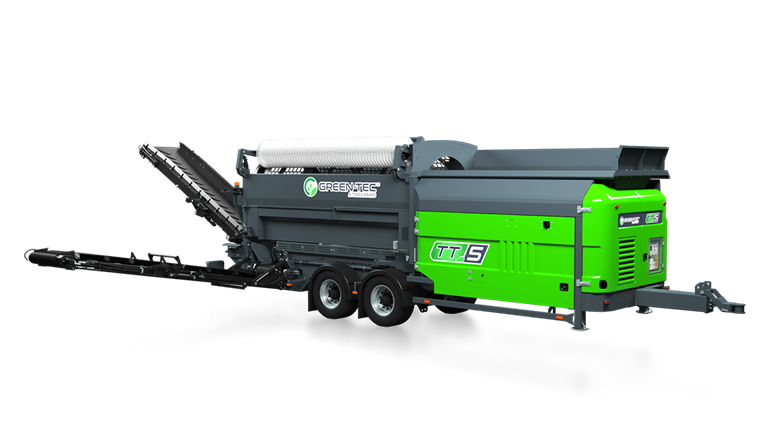

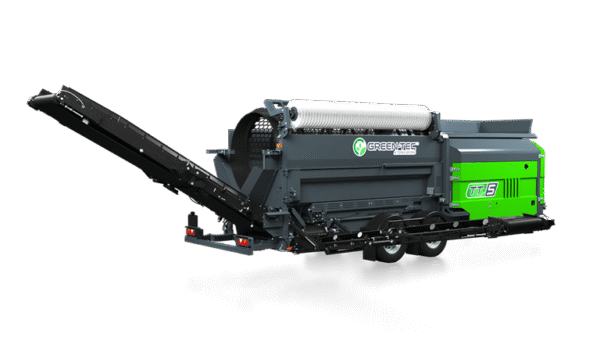

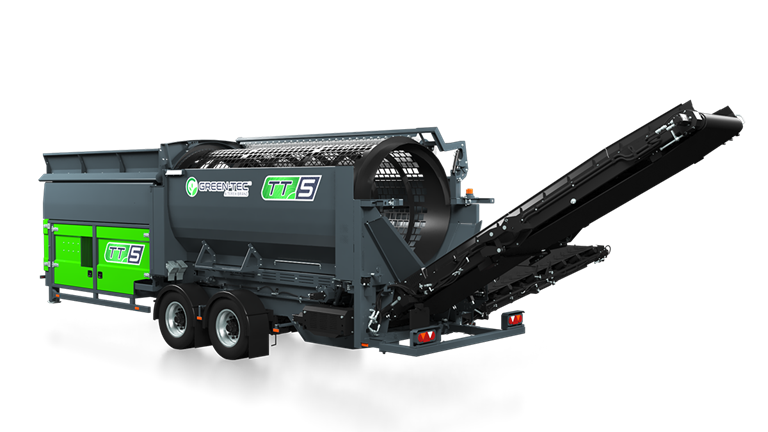

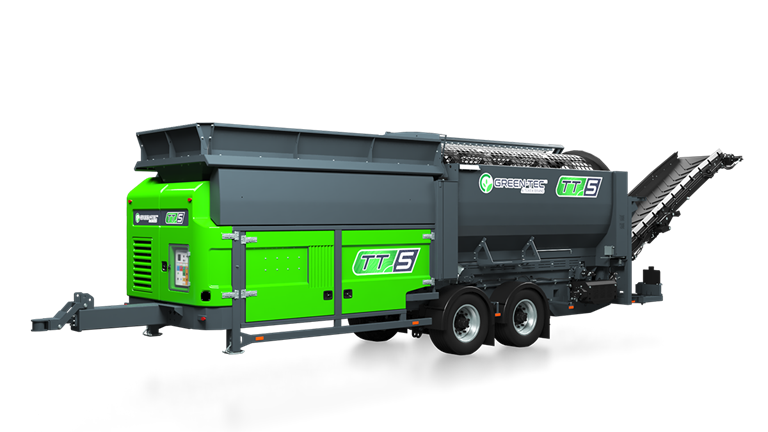

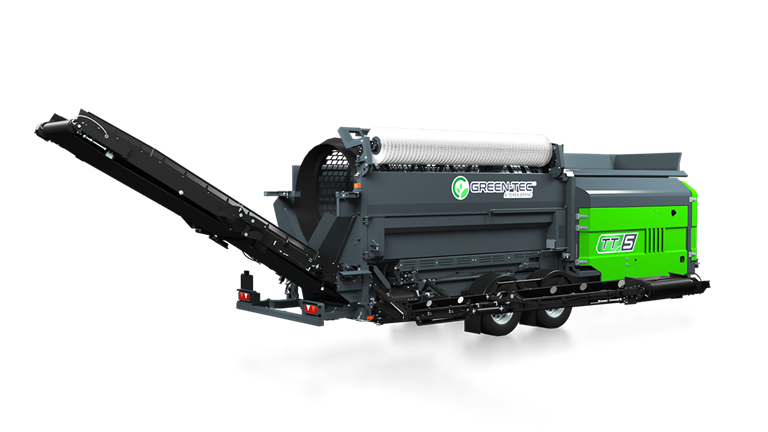

Green-Tec’s TT5 Trommel presents an optimal screening solution for biomass and compost, offering flexibility and efficient production rates. With its adaptable design featuring a spiral pattern and horizontal drum, this trommel excels in various market conditions. A standout feature is its ease of maintenance, facilitated by double-sided access, enabling drum changes with minimal constraints. Also available as a wheeled option.
| Drum | |
| Screening Area | 23 m² |
| Drum Size | ø5’ 1” x 15’ 5” |
| Feeder Capacity | 5 m³ |
| Chain & Drive Sprocket | Single welded |
| Transport Dimensions (Tracked) | |
| Width (tracked) | 9 ft 50 in |
| Height (tracked) | 11 ft 20 in |
| Weight (tracked) | 40000 lbs |
| Length (tracked) | 32 ft 20 in |
| Power Unit & Control | |
| Engine Option | CAT C2.2 74 hp Stage V / Tier 4 Final |
| Drum & Feeder Drives | Hydrostatic |
| Maintenance | Swing out engine |
| Engine Option | CAT C4.4 83 hp Stage IIIA |
| Transport Dimensions (Wheeled) | |
| Height (wheeled) | 13 ft 20 in |
| Weight (wheeled) | 37480 lbs |
| Width (wheeled) | 8 ft 40 in |
| Length (wheeled) | 37 ft 10 in |
